PRODUCT APPLICATIONS

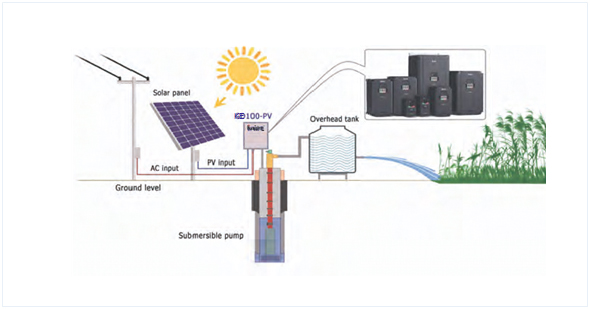

In order meet the requirement from end-users, and solve the disadvantages of solar inverter in the market, kaizen developed a new product KE 100-PV. It solves all the problems the users mentioned.

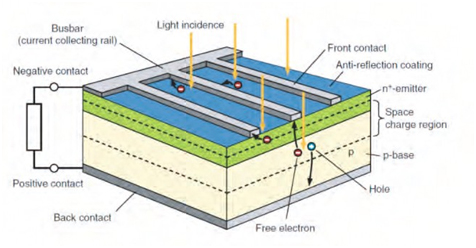

Photovoltaic (PV) is the name of a method of converting solar energy into current electricity using semiconducting materials that exhibit the photovoltaic effect. A photovoltaic system employs solar panels composed of a number of solar cells to supply usable solar power. The process is the both physical and chemical in nature, as the first step involves the photoelectric effect from which a second electrochemical process take place involving crystallized atoms being ionized in a series, generating an electric current.

There are two solutions for different power rating pump, for the pump less than 2.2kW, the solution is as the figure 2, for the bigger power rating pump, the solution is as the figure 3. For little power rating pump <2.2kW, when we configure the solar panels, the PV power is enough, but the PV output voltage is not enough, so it needs to buy more solar panel to increase the PV voltage.

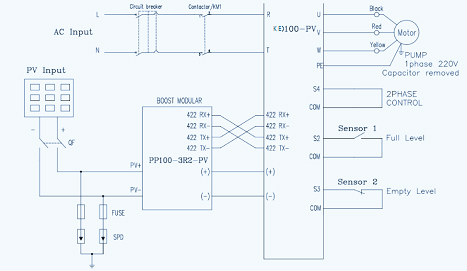

KE 100-PV supply the boost modular, support low PV voltage input and high DC voltage output, can reduce the PV quantity.

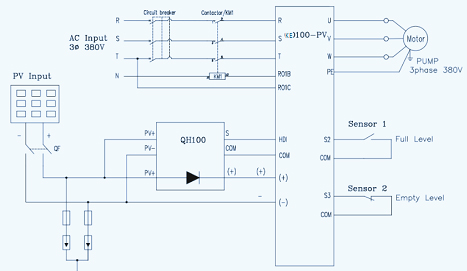

The auto-switch modular can detect the PV output voltage, and send the signal to KE100-PV, inverter will control the contactor to turn on/off the AC input.

The auto-switch modular can detect the PV output voltage, and send the signal to KE100-PV, inverter will control the contactor to turn on/off the AC input.

Because the KE100-PV integrates so many features, such as reduce the PV input voltage, switch power input channel between DC and AC, high IP class IP54, and so on, the end users don’t need to maintain the solar inverter any more after setting the parameters in the first time.

After sunset the light will be weak, KE100-PV can detect the PV voltage is less than the setting point, it will change the power input channel from PV to AC grid automatically. If only PV channel input, KE100-PV will hibernate in the weak sun light and wake up automatically in the morning.
